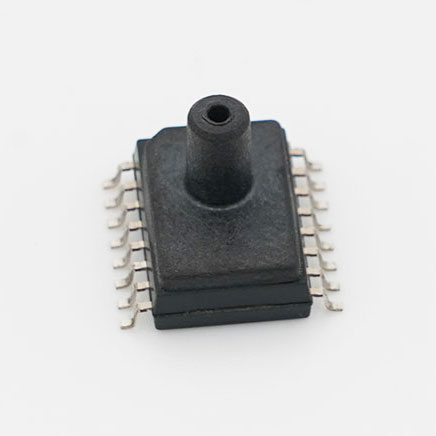

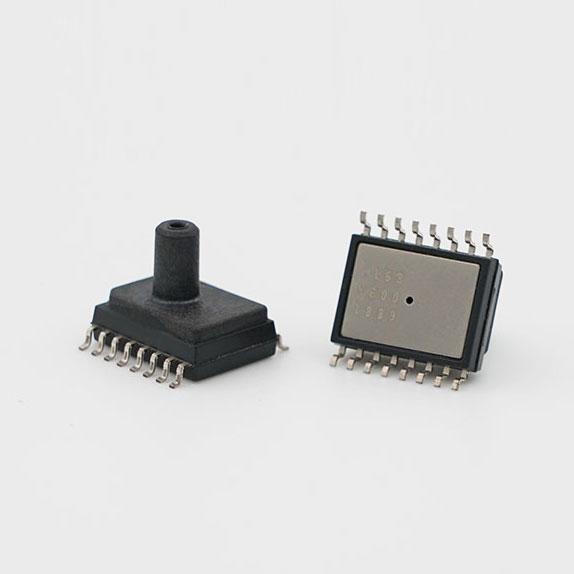

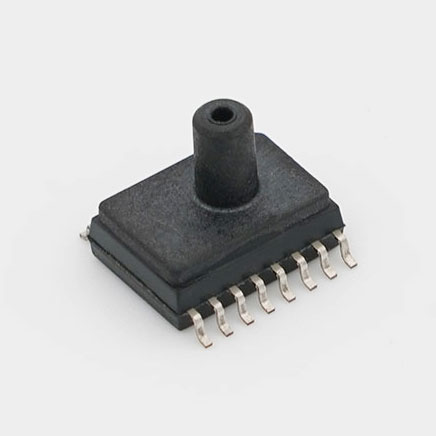

XGZP6881A (SM6295-BGC-S-040 Alternative Parts)

Wide Ranges: -100kPa…0kPa…200kPa(show in Pressure Range Example)
Gauge Pressure Type
For Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal(Refer to XGZP6881D for I2C interface)
Temp. Compensated: 0℃～+60℃(32℉～+140℉)
Affordable Cost, Easy-to-use

Description
SAFETY NOTES & WARRANTY

Description

ESSENTIAL DETAILS

SM6295-BGC-S-040 vs XGZP6881A Comparison


Manufacturer	CFSensor	Silicon Microstructures
Product Category	Pressure Sensor	Pressure Sensor
Series	XGZP6881A	SM6295
Model Number	As Order Guide	SM6295-BGC-S-040
Pressure Range	-100kPa…0kPa…200kPa	0 cmH2O～140 cmH2O
Pressure Type	Gauge	Gauge
Power Supply	5V/3.3V	4.75V ~ 5.25V
Output Type	Amplified Analog	Amplified Analog
Output	0.5~4.5V/0.2~2.7V
Accuracy	±2.5%(customizable)	±2.5%
Measured Media	Air or Non-corrosive Gas
Temp. Compensated	0℃～+60℃(32℉～+140℉)	0°C~60°C
Operating Temp	-30~100°C	-20°C~80°C
Package	Plastic Tube	Tape & Reel

Notice: Pin definitions vary, refer to datasheet only.

APPLICATIONS

Medical&Healthcare
Industrial&Automation
Domestic Appliance
Consumer Electronic
Automotive Electronic

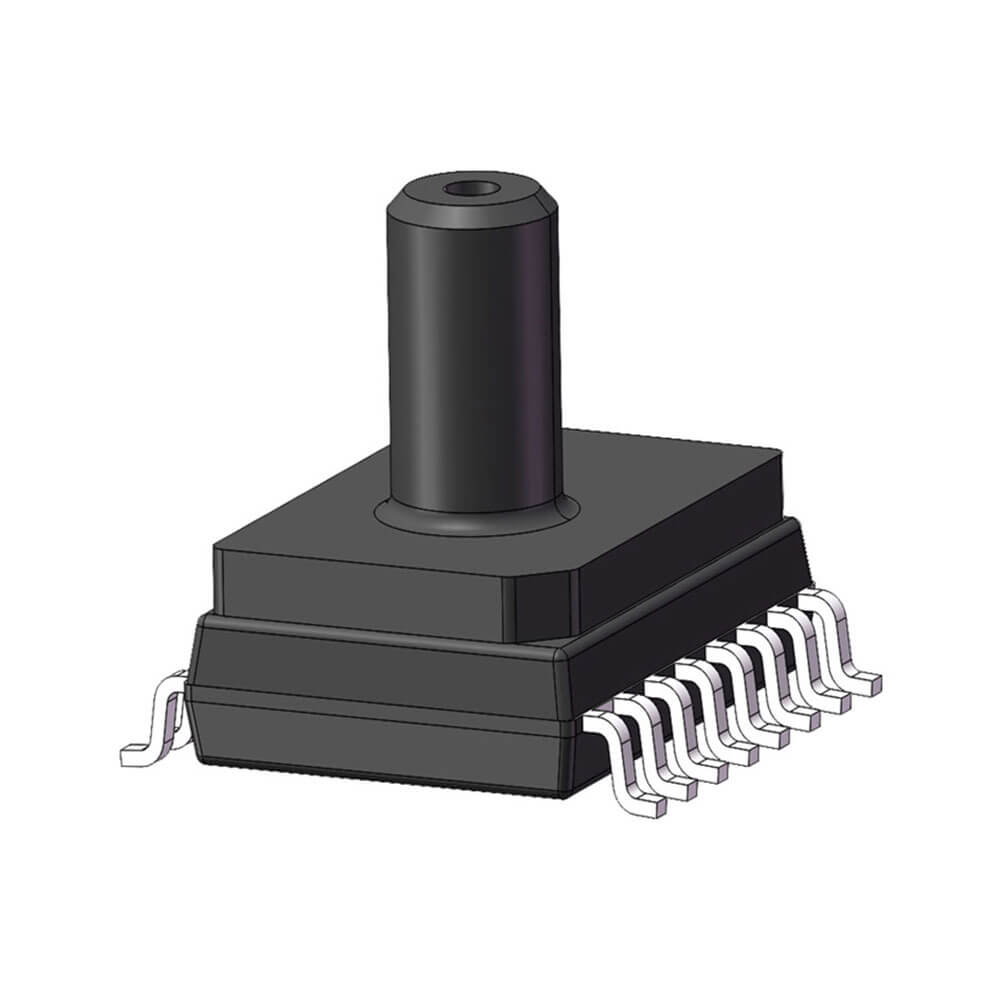

INTRODUCTION

XGZP6881A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading the pressure over the specified full scale pressure span and temp.range.

The XGZP6881A incorporates a silicon piezoresistive pressure sensor chip and an interior signalconditional Application Specific Integrated Circuit(ASIC) in a SOIC-16 package, which can be mounted directly on a standard PCB.

The XGZP6881A is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity, so XGZP6881A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc.

XGZP6881A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available.

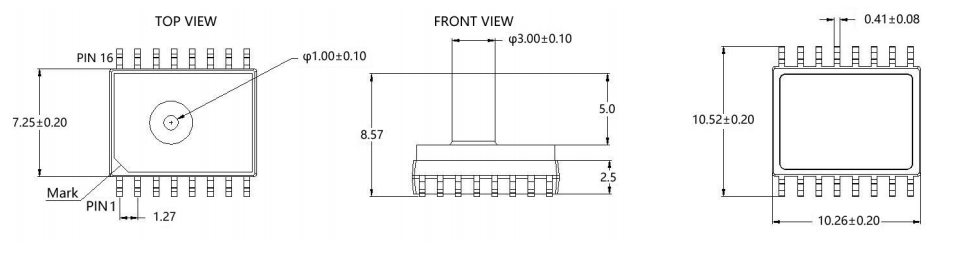

DIMENSION (Unit:mm)

6881A DIMENSION

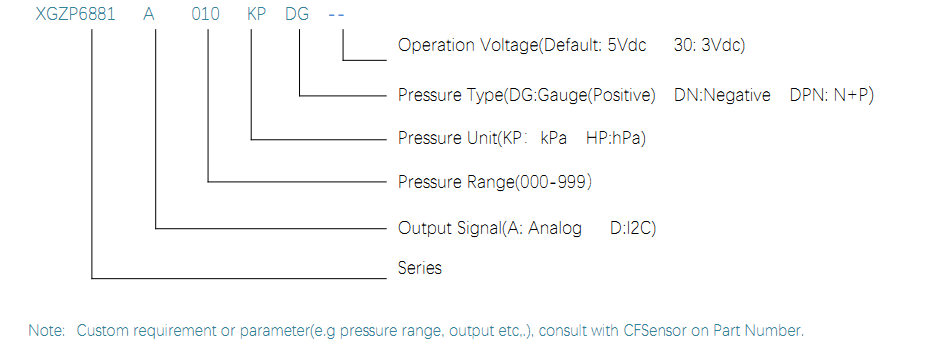

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

6881A ORDER GUIDE

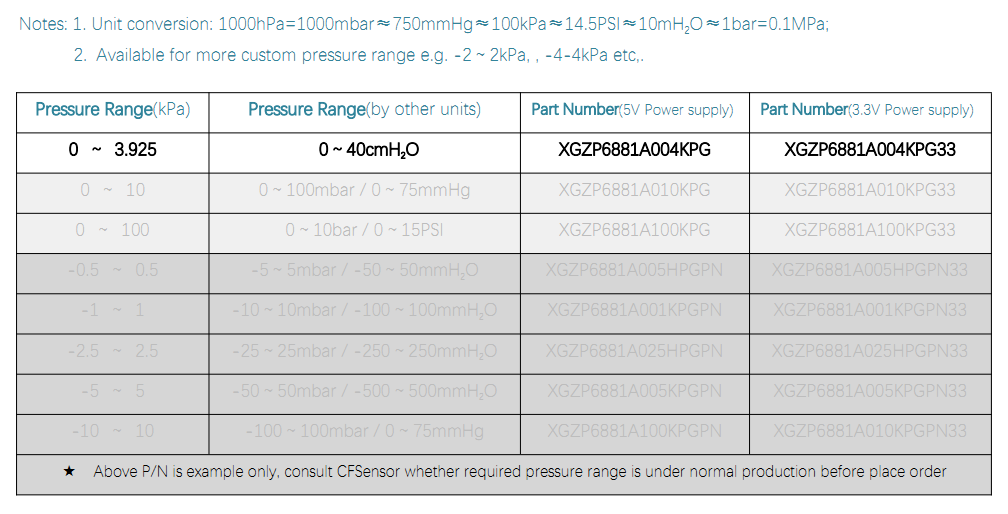

PRESSURE RANGE EXAMPLE

6881A PRESSURE RANGE

More about the difference between SM6295-BGC-S-040 and XGZP6881A, refer to Datasheet or contact CFSensor

XGZP6881A Pressure Sensor V1.4.PDF
