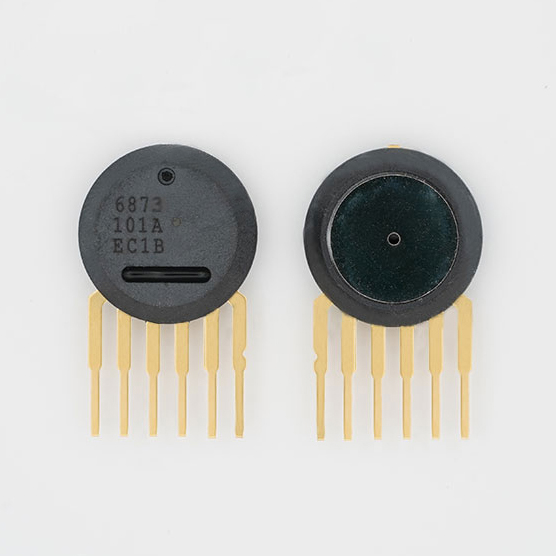

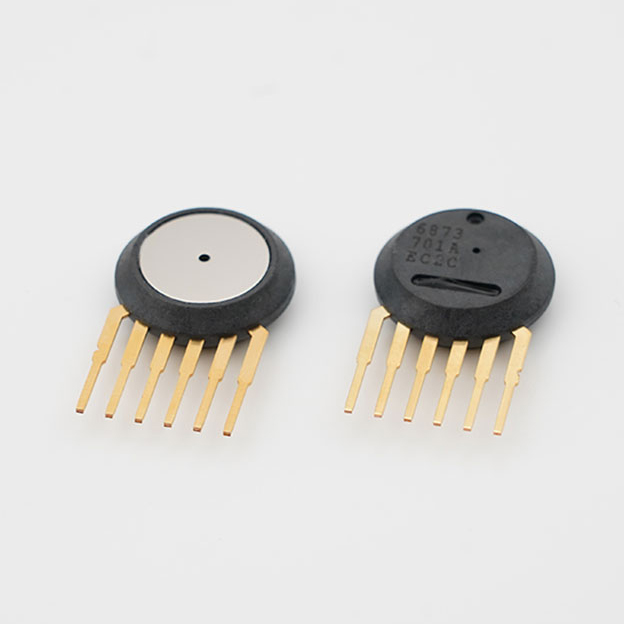

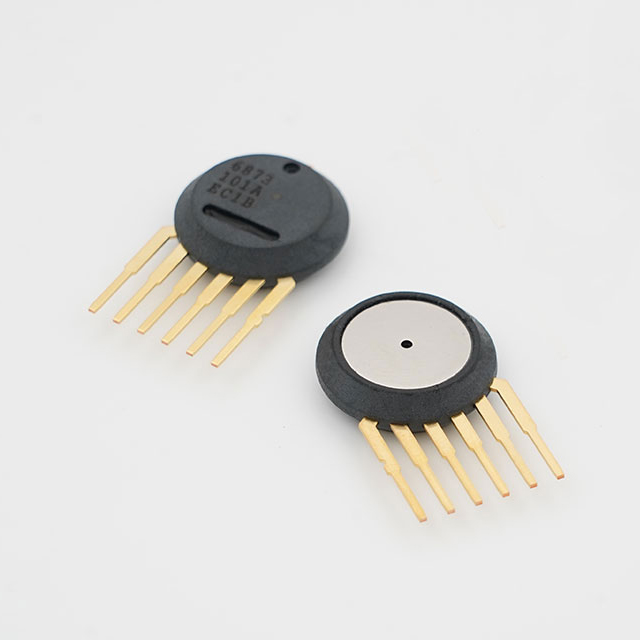

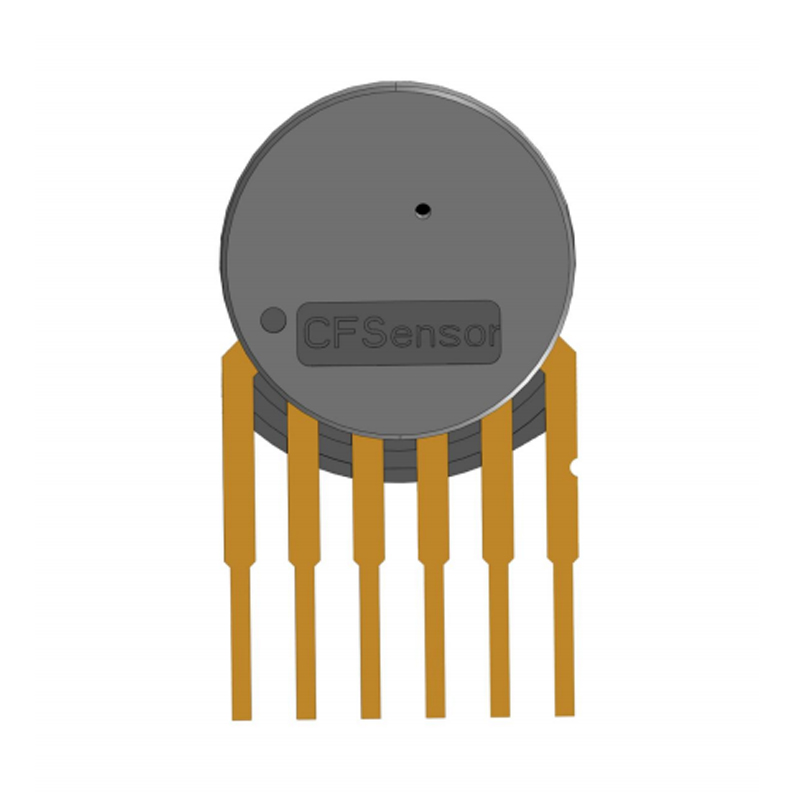

XGZP6873A (MPX5050D, MPX5100D, MPX5700D, MPX4250D, MPX5500D, MPX5999D Alternative Parts)

Wide Ranges: 0kPa~100kPa…1000kPa(show in Pressure Range Example)
Differential Pressure Type(Refer to XGZP6872A for Absolute Type)
For Non-corrosive Gas or Air
Optional 5V and 3.3V Voltage
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃～+60℃(32℉～+140℉)
Direct Application,Low Cost.

Description
SAFETY NOTES & WARRANTY

Description

ESSENTIAL DETAILS

MPX5050D vs MPX5100D vs MPX5700D vs MPX4250D vs MPX5500D vs MPX5999D vs XGZP6873A Comparison


Manufacturer	CFSensor	NXP	NXP	NXP	NXP	NXP	NXP
Product Category	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor
Series	XGZP6873A	MPX5050	MPX5100	MPX5700	MPX4250	MPX5500	MPX5999
Model Number	As Order Guide	MPX5050D	MPX5100D	MPX5700D	MPX4250D	MPX5500D	MPX5999D
Pressure Range	0kPa～100kPa…1000kPa	0KPa～50KPa	0KPa～100KPa	0KPa～700KPa	0KPa～250KPa	0KPa～500KPa	0KPa～1000KPa
Pressure Type	Differential	Differential	Differential	Differential	Differential	Differential	Differential
Power Supply	5V or 3.3V	4.75V ~ 5.25V	4.75V ~ 5.25V	4.75V ~ 5.25V	4.85V ~ 5.35V	4.75V ~ 5.25V	4.75V ~ 5.25V
Output Type	Analog	Analog	Analog	Analog	Analog	Analog	Analog
Output	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V	0.2 V ~ 4.9 V	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V
Accuracy	±2.5%	±2.5%	±2.5%	±2.5%	±1.5%	±2.5%	±2.5%
Measured Media	Air or Non-corrosive Gas
Temp. Compensated	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Operating Temp	-30~105°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C
Package	Pallets	Tray	Tray	Tray	Tray	Tray	Tray

Notice: Pin definitions vary, refer to datasheet only.

APPLICATIONS

Medical&Healthcare
Industrial&Automation
Domestic Appliance
Consumer Electronic
Automotive Electronic

INTRODUCTION

XGZP6873A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading gage pressure over the specified full scale pressure span and temp.range.

The XGZP6873A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with 6 PIN, which can be mounted freely from different direction .

The XGZP6873A is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity, so XGZP6873A pressure sensor satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc.

XGZP6873A pressure sensor is for high volume application at an affordable cost and perfect performance.

Customized calibrations(working voltage,output voltage,and pressure range) are available.

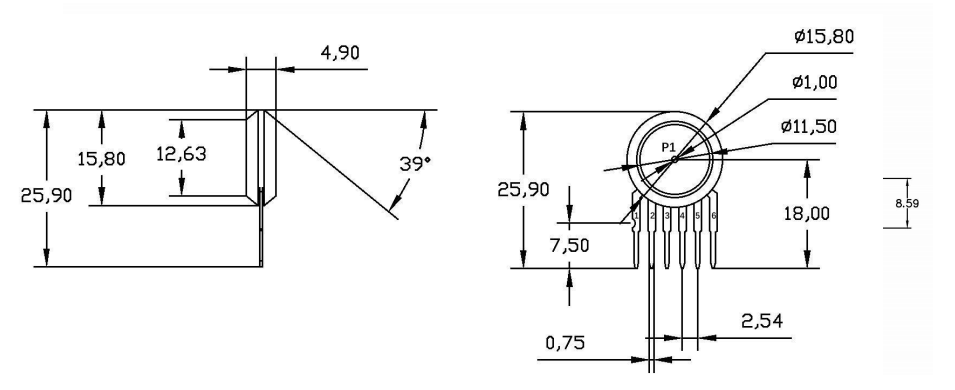

DIMENSION (Unit:mm Unspecified Tolerances:±0.1mm)

6873A. DIMENSION

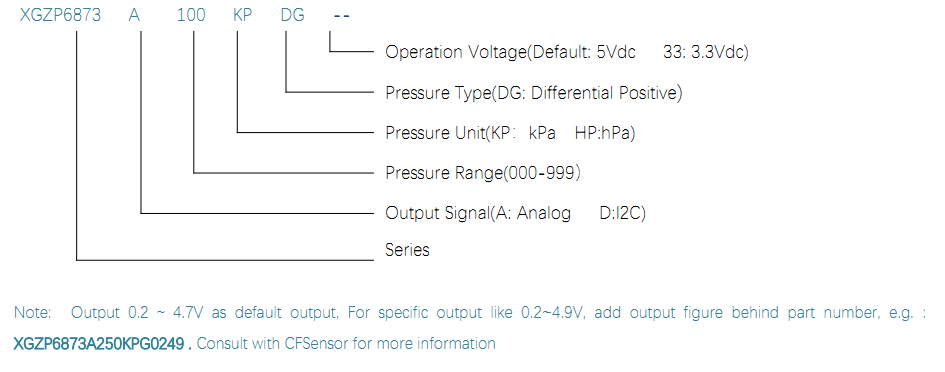

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

6873A ORDER GUIDE

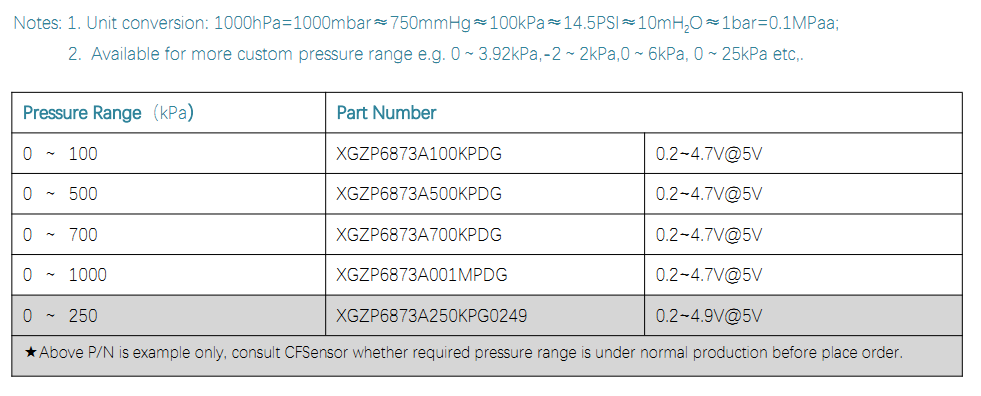

PRESSURE RANGE EXAMPLE

6873A PRESSURE RANGE.

More about the difference between MPX5050D, MPX5700D, MPX4250D, MPX5999D and XGZP6873A, refer to Datasheet or contact CFSensor

XGZP6873A Pressure Sensor V1.4.PDF

SAFETY NOTES & WARRANTY

SAFETY NOTES

Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

The driving current and voltage should be used below the rated value.
Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
If the sensor come with sharp PIN, please be careful not to hurt your body when using it.

WARRANTY

The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
